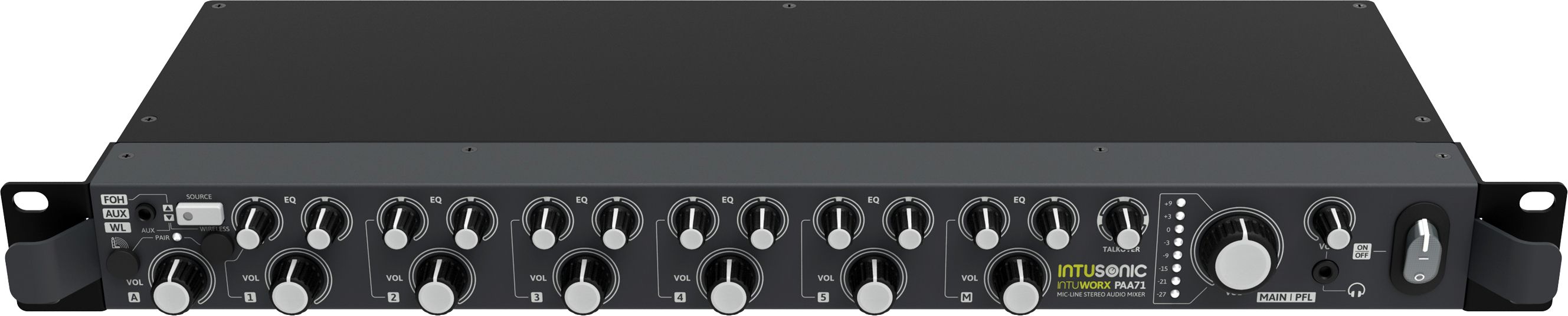

PAA71 is 7-channel mic/line mixer and the perfect centre of any installed sound system. It offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal. One further balanced stereo line level input is specifically useful for sources at larger distance, like a mixer on a stage, or the output of a different room’s system. The same input can be switched to receive its input signal from the 3.5mm TRS jack on the front, or the built-in LINKOUSTIC™ 4.2 wireless audio link. An additional dedicated microphone input with adjustable talkover (priority) provides control over announcements. Every input – with the exception of the balanced stereo input – is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems where required.

• 5 stereo inputs switchable balanced-mic/unbalanced-line
• 1 balanced stereo input (FOH input), switchable to 3.5mm TRS input on the front panel or internal wireless audio receiver
• 1 dedicated microphone input on rear-side 3.5mm strip connector
• Rear-panel gain control, front-panel 2-Band EQ and front-panel level control for all input channels (no gain for FOH)
• 12V phantom power for microphones by internal jumper
• Adjustable auto talk-over (music level reduction if mic used)
• Internal LINKOUSTIC™ 4.2 wireless audio link with front-side antenna and forced pairing-release function
• One stereo master output (balanced 3.5mm strip connectors)
• Rear-side adjustable maximum level control for master output
• Rear-side mono switch for master output
• 8-LED level meter for stereo master output
• Emergency input (replaces master by emergency signal)
• Output mute contact to externally mute the output
• 3.5mm headphones output with volume control
• Unbalanced record output
• Internal wide-voltage linear PSU for excellent audio dynamics
• AC mains voltage selector switch 115/230V
• Full metal case with separately detachable rack ears and handles
• CE/ROHS compliant
• Frequency response: 20Hz – 20 kHz
• S/N ratio: > 82dB (Line)
• Crosstalk damping: > 72dB (Line)
• THD&N: < 0.05%
• AC IN: 115V/230~ 50/60Hz, max 12W
• Dimensions WxDxH: 482.6x180x44mm
• Weight: 2.5 kg
